High Strength Corrugated Sheet Roll Forming Machine
High Strength Corrugated Sheet Roll Forming Machine
High Strength Corrugated Sheet Roll Forming Machine
High Strength Corrugated Sheet Roll Forming Machine
High Strength Corrugated Sheet Roll Forming Machine

High Strength Corrugated Sheet Roll Forming Machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 7200*1650*1500

    Voltage: 380V/50HZ3Phase(as Customer's Request)

    Roller Fixer: Middle Plate Welded

    Frame: 350 H Steel Welded

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

    Main Power: 3 Kw

    Weight Of Main Part: 4.5 Ton

    Frame Thickness: 25 Mm

    Diameter Of Shafts: 80 Mm

Additional Info

    Packaging: 1*40GP container

    Productivity: 0-12 m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE, ISO9001

    Port: TIANJIN

Product Description


High Strength Corrugated Sheet Roll Forming Machine



A corrugated sheet roll forming machine typically includes the following components.

  • Manual Decoiler
  • Feeding guide
  • Roll forming system
  • Transmission system
  • Hydraulic system
  • Control system
  • Hydraulic cutter
  • Oil pump
  • Runout tables

While in some other cases, we can provide hydraulic decoiler and auto stacker as per request.

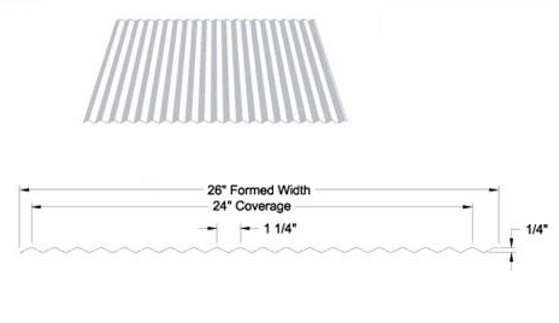

Take the following corrugated sheet drawing for example:

1

2

Based on the corrugated sheet dawing and customer needs, now we have three optionsfor you to choose:

Option A: normal speed 25 meter per minute corrugated sheet machine.

Option B: Higher speed 35 meter per minute corrugated sheet machine

Option C: Fast speed 50 meter per minute corrugated sheet machine

In this article, I only show option A, please check other options in next article.


Technical Parameters of the High Strength Corrugated Sheet Roll Forming Machine:

3

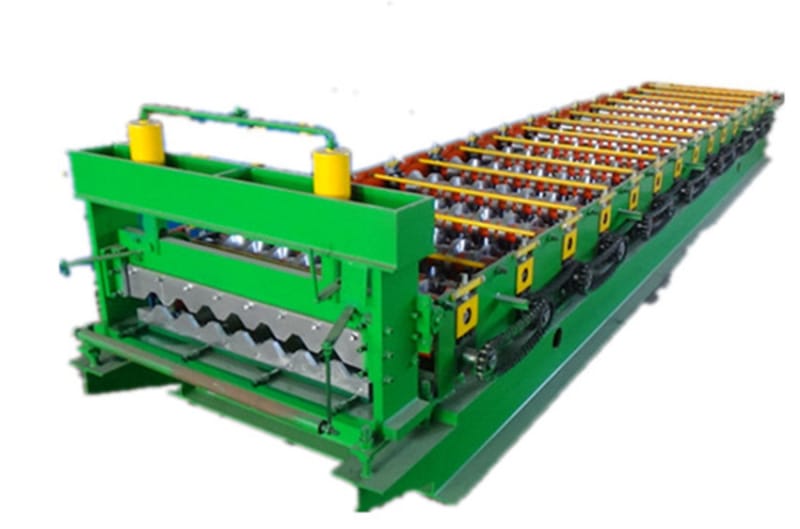

Individual forming stands corrugated sheet roll forming machine

  • Raw Material: Prepainted color steel coils; Galvanized steel coils; Galvalume steel coils;
  • Yield strength: 235MPA-550MPA;
  • Raw Material Thickness: 0.3-0.8mm;
  • Raw Material Width:914-1250mm;
  • Main Power: 5.5 KW;
  • Forming stations: 16-22 stations;
  • Stands structure: Conjoint type OR Individual Type
  • Machine Frame stand: 36# H Beam steel welded
  • Thickness of Steel Frame: 18mm
  • Material of Roller: High grade 45# steel, Polished and coated with 0.05mm hard chrome.
  • Shaft Material: High grade 45# steel
  • Diameter of shafts: 70mm
  • Hydraulic Cutter: Stop to cut
  • Material of cutting dies: Cr12 steel
  • Hydraulic power for cutting: 4KW
  • Cutting lengths and quantities: Clients can set required lengths and quantities through the touch screen on PLC control box.
  • Control system: Panasonic PLC, Inverter, CHNT transformer and Omron encoder

Where the High Strength Corrugated Sheet Roll Forming Machine is used?

Corrugated sheet roll forming machine is a common metal roll forming equipent that produces corrugated Metal Roofing and Siding Panels. In our daily life we can see many fans of corrugated metal sheets.


It either could be used as roofing or it can be used as cladding.

4



Made of various metals and alloys steel, corrugated metal sheets have been popular for so many years. The most common materials are prepainted steel, galvanized steel, Alu-zinc steel, and CR steel. People tend to use the sheets for residential, commerical, industrial as well as agricultural buildings.

Meawhile corrugated sheet roll forming machine could have other usage like the iron corrugated sheet roll forming machines as per requests.


The following sample, it is the corrugated sheet uses as the conversion belt. And the thickness could be from 0.8 to 1.5mm. And we also give the Crimping Machine.

5




We can design and build roll forming machine making steel with individual stands structure and gear-box transmission. This machine produces corrugated metal sheets from 2mm thick material used for a Commercial Storage Silo. Furthermore, some other Silo corrugated sheets need even thickness up to 6mm.

6

FAQ:

1.Does one High Strength Corrugated Sheet Roll Forming Machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

xzz




Looking for ideal Fashion Stainless Steel Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Corrugated Round Wave are quality guaranteed. We are China Origin Factory of Popular Colour Steel. If you have any question, please feel free to contact us.
