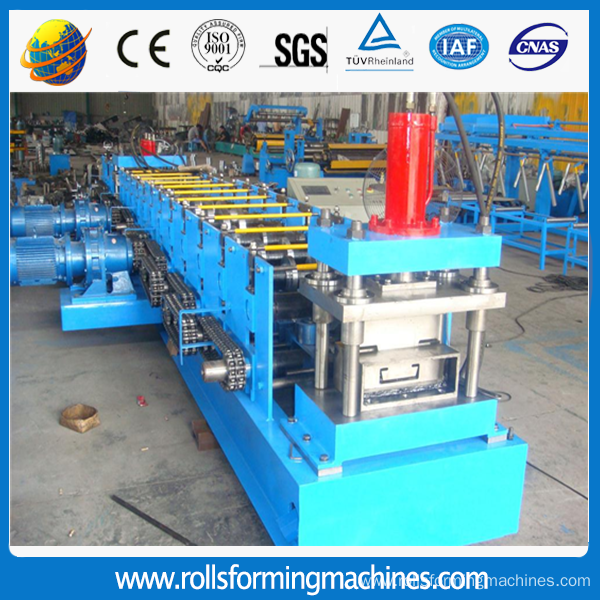

Automaticaly steel c channel c purlin machine

Automaticaly steel c channel c purlin machine

Automaticaly steel c channel c purlin machine Decoiler System:

Loading capacity: 3 T
Uncoiling width: 500 mm
Inner diameter: 450-550 mm

Automaticaly steel c channel c purlin machine Roll Forming System:

Main power: 11 kw
Drive mode: Chain

Number of rollers: 12 rollers
Diameter of shafts: φ 60 mm
Weight of main part: About 8 tons

Frame type: Middle plate frame

Material of shafts: 45# steel with tempering

Material of rollers: GCr15 quench with 58-60°

Forming speed: 8-12 m/minute (with punching)
Voltage : 380 v 50 hz 3 phase (as customer`s request)

Size of the main part: About 8800 х1800х 1400mm(L*W*H)

Automaticaly steel c channel c purlin machine Automatic Cutting System:

Power supply : Hydraulic power

Material of blades: Cr12mov quenched
Components:It contains one set of blade, one hydraulic tank and one cutter machine.

Automaticaly steel c channel c purlin machine Electric Control System:

Length Tolerance: 3m±1.5mm

Automatic length measurement

Language: English and Chinese

Automatic quantity measurement

Length inaccuracy can be amended easily.

Voltage: 380 v 50 hz 3 phase (as customer`s request)

Operating panel: touching screen and button together.

Automaticaly steel c channel c purlin machine Our Service:

1. One year warranty, whole life technical support.
2. Installation & adjustment: We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary.
